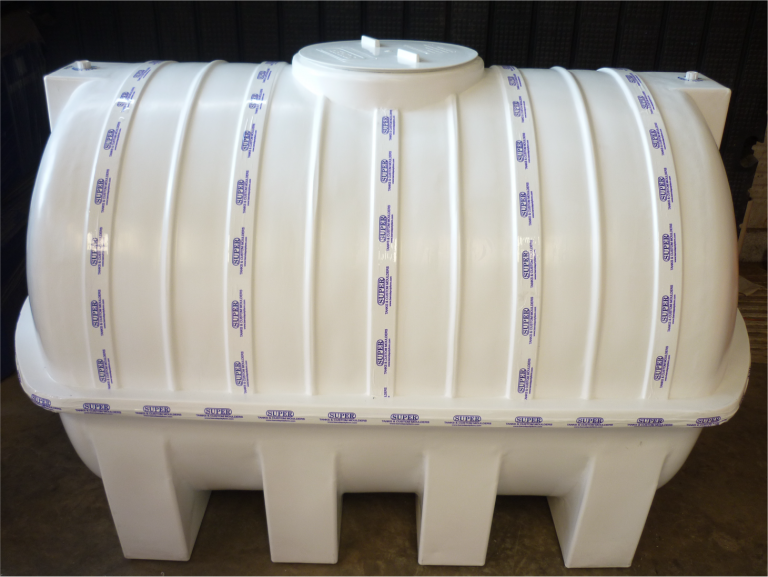

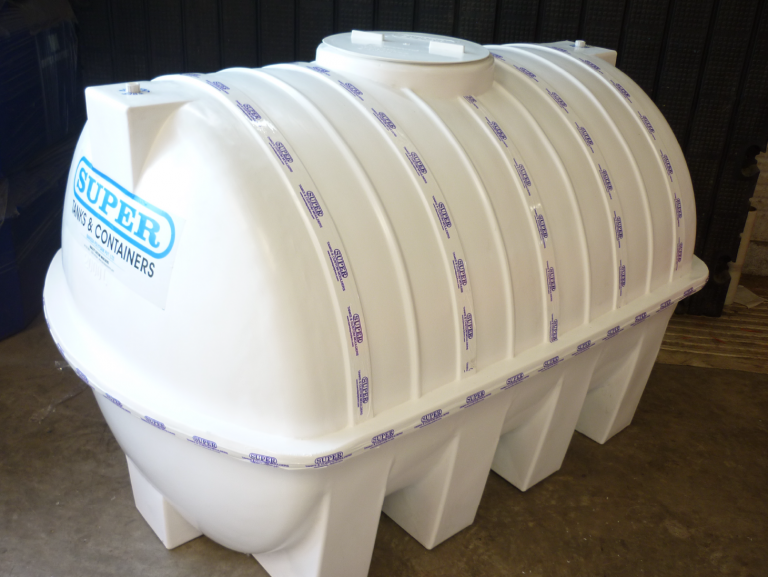

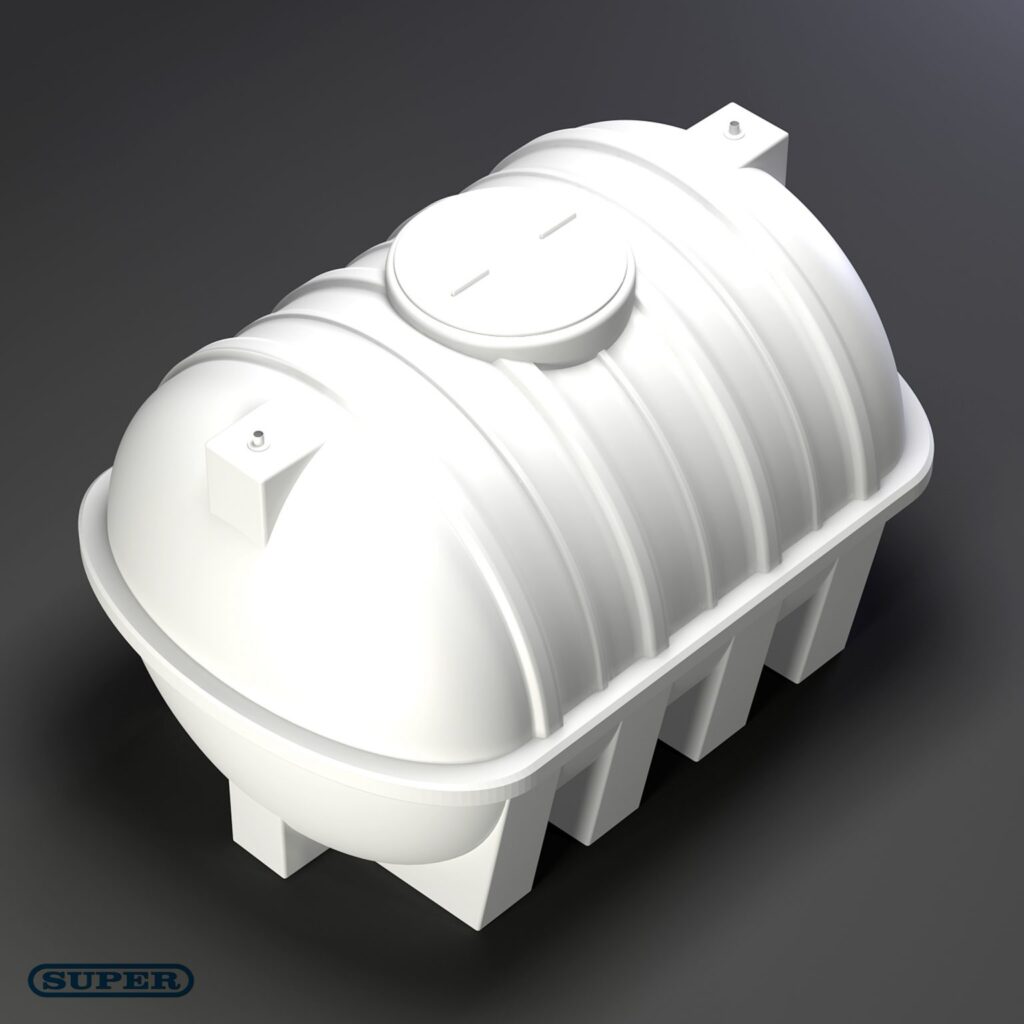

SUPER Horizontal Storage Tanks

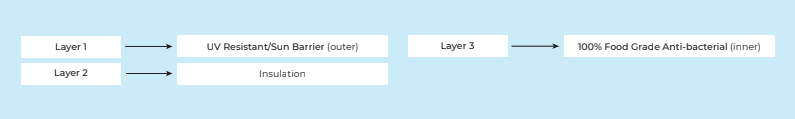

SUPER Horizontal tanks is available in the 3-layer module only.
Features
The horizontal water tank is quat in shape. This water tank is low in height which makes it an ideal roof top water tank. We don’t need to camouflaged the tank to maintain the exterior look of the building.
Materials: Hexane Grade C6 Polyethylene (HDPE).
|
Capacity (in Liters) |
Length (L) (in mm) |
Width (W) (in mm) |
Height (H) (in mm) |
|---|---|---|---|
| 1000 | 1500 | 1100 | 1000 |
| 1500 | 1800 | 1250 | 1150 |
| 2000 | 2000 | 1325 | 1225 |
These dimensions are given for broad reference. Please keep a tolerance of +/- 2% in all dimensions.
Available Colors:
Three Layer Horizontal Tank White only
Line Diagram
SUPER tanks are manufactured from food-grade polyethylene and are safe for use when in contact with drinking water.
UV stabilization prevents any degradation and ensures that there is no cracking, chalking or loss in physical properties of SUPER tanks.
Extra ribs for extra strength
Air tight threaded lid
Other tanks bulge due to lack of ribs
FREE Breather with Tank
Anti Bacterial Tank
Capacity Range 200 L To 25000 L
